Model |

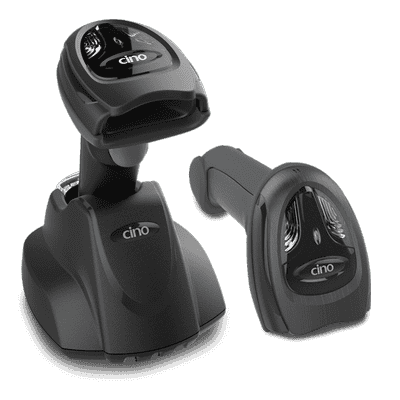

Cino A780BT |
|
Performance Characteristics |
|
Image Sensor |
1280 x 800 Pixels |
|
Print Contrast |
18% minimum reflectance difference |
|
Light Source |
660nm LED |
|
Imager Field of View |
41.5˚H x 25.9˚V |
|
Minimum Resolution |
HD Model
2.4 mil Code 39, 4.5 mil DM
SR Model
2.7 mil Code 39, 4.8 mil DM
ER Model
3.5 mil Code 39, 7 mil DM |
|
Reading Range |
HD Model
13 mil (0.33mm) UPC/EAN up to 14.1-inch
SR Model
13 mil (0.33mm) UPC/EAN up to 19.6-jnch
ER Model
13 mil (0.33mm) UPC/EAN up to 26-inch |
|
Roll, Pitch, Skew |
Roll: 360˚; Pitch: ± 75˚; Skew: ± 65˚ |
|
Motion Tolerance |
Up to 617 cm/s (243 in/s) |
|
Configuration Setup |
FuzzyScan Barcode commands
FuzzyScan iCode
FuzzyScan PowerTool |
|
Data Processing |
DataWizard Premium |
|
Image Capture |
BMP |
|
Supported Symbologies |
|
1D Linear Codes |
Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC/ EAN/ JAN, UPC/ EAN/ JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey |
|
2D Codes |
PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, Aztec, MicroQR |
|
Postal barcodes |
Australian Post, US Planet, US Postnet, Japan Post Posi LAPA 4 State Code |
|
Electrical Characteristics |
|
Battery |
3.7V, 2600mAH Li-ion rechargeable battery |
|
Battery Charge Time |
Approx. 4-5 hours per full charge |
|
Scans per full Charge |
More than 67,600 scans and transmissions |
|
Operating Voltage |
5 ± 10% VDC |
|
Operating Current |
Charging: Max.750 mA
Standby: Max.175 mA
(Scanner with Smart Cradle) |
|
Communication Characteristics |
|
RF Standard |
Bluetooth v4.0 |
|
RF Frequency Band |
2.402~2.4830 GHz unlicensed ISM band |
|
Radio Link Modes |
PAIR, PICO, SPP, HID |
|
Communication Range |
More than 100 meters in open space when working with Smart Cradle, line of sight |
|
Supported Profiles |
SPP, HID |
|
Physical Characteristics |
|
Dimensions |
93.5 mm (L) x 71 mm (W) x 160 mm (D) |
|
Weight |
208g (Battery included) |
|
Color |
Black |
|
User Environment |
|
Drop Specifications |
Withstands multiple drops from 2.0m (6.6ft) to concrete |
|
Environmental Sealing |
IP42 |
|
Operating Temperature |
-10˚C to 50˚C (14˚F to 122˚F) |
|
Storage Temperature |
-40˚C to 70˚C (-40˚F to 158˚F) |
|
Humidity |
5% to 95% relative humidity, non-condensing |
|
Ambient Light Immunity |
0 ~ 106.000 lux |
|
ESD Protection |
Functional after 15KV discharge |
|
Safety & Regulatory |
|
EMC & Radio |
CE, FCC, BSMI, RCM, KC, NCC, VCCI, MIC, SRRC |
|
Safety |
LED Eye Safety IEC62471, Exempt Group |
|
Environmental |
Compliant with RoHS directive |
|
Accessories |
|
Smart Cradle |
RF Standard: Bluetooth v4.0 |
|
Battery charging: Fast charge |
User Interfaces:
+ 1 blue link indicator,
+ 2-color status indicator
+ Beeper, Paging / Reset button |
Host Interfaces:
+ USB HID (USB Keyboard)
+ USB VCOM (USB COM port emulation)
+ Standard RS232 |
|
Charging Cradle |
Battery Charging: Fast charge |
|
User Interface: 1 blue power indicator |
|
Interface Cables |
RS232 Serial Cable
USB Cable |
|
Others |
5VDC Power Supply Unit
USB Power Cable
BT2100 Battery Pack (2600mAh)
US100 SmartStand
US50 Hands-Free Stand |
